Button optional:

LED color: Red LED, Blue LED, Yellow LED, other color LED;

Braille: without Braille;

Button Surface: Flat surface ;

Connection: Wire connection;

Voltage: 24VDC, 12VDC, 6VDC, 2VDC

Normal Open,NormalClosed,

Number & Figure in button surface: no.:1.2.3….64, figure: Door Open, Door Close, Arrow Up, Arrow Down, Alarm Bell, telephone, G, B, P, B1, B2, etc.;

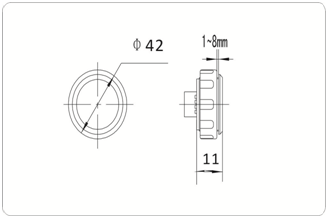

figure dimension (mm):

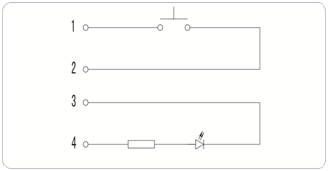

Circuit diagram

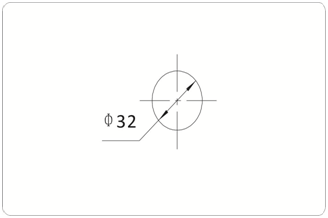

Install Mounting dimension (mm):

Feature:

Button surface material: Outer frame material is ABS, button surface cover material is stainless steel ;

The thickness of installation plate: 2—3mm, Installed by plastic clipping;

Fire-proof components, in accordance with European standard EN-81

Life: > 5 million of operation life.

Reference supplied for HYUNDAI elevator.
